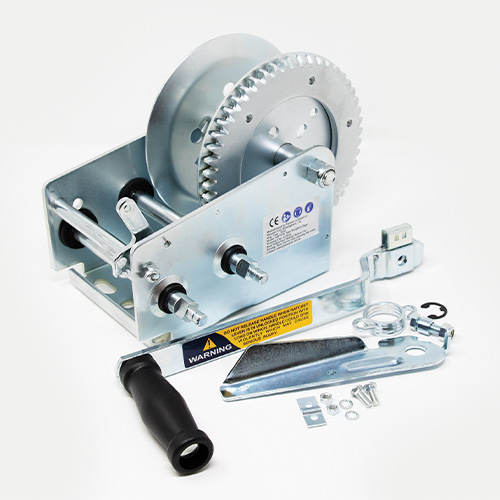

MP7976 Heavy Duty Hand Winch With Hand Brake 1100Kg / 2500LB
MP7976 Heavy Duty Hand Winch With Hand Brake 1100Kg / 2500LB. Robust steel construction for durability heavy duty hand winch
MP7976 Heavy Duty Hand Winch With Hand Brake 1100Kg / 2500LB
- Robust steel construction for durability heavy duty hand winch
- Fully zinc plated
- CE & UKCA approved

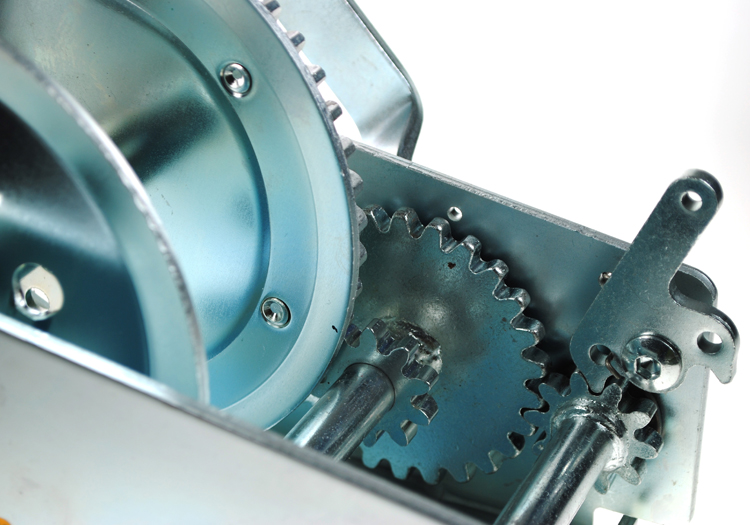

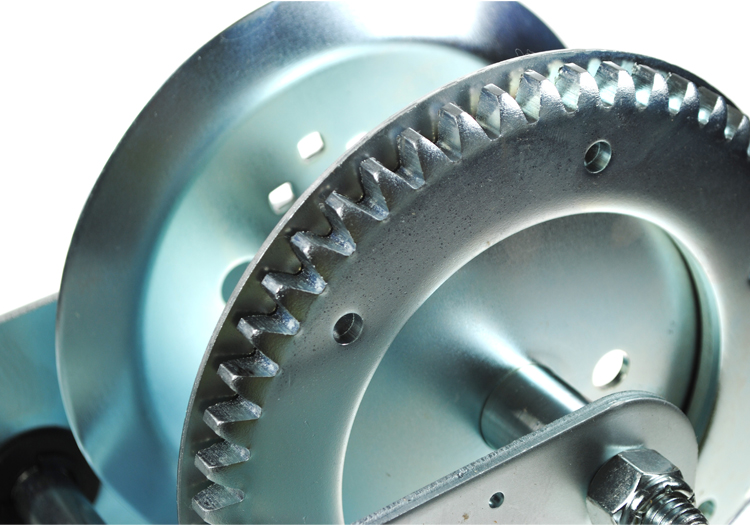

- With solid gears
- Features a safety ratchet
- Accessories and spares available
- Supplied with a snap-on handle
- Max rolling load 1625Kg
Specification:
- CE Rated Working Capacity 625kg
- Manufacturer’s Recommended Max. Capacity 1100kg / 2500LB
- Speeds 2
- Gear Ratio 5.5:1 / 14.3:1
- Min / Max Mechanical Advantage 92:1 / 240:1
- Operating Force Required 6.79kg / 2.60kg
- Drive Gear Single
- Brake Supplied Yes
- Strap Included No
- Max. rolling load on a 30% gradient and a good surface. Example line pull (900kg) x 2.6 = 2340Kg
Spares:
- MP79761 – Handle
- MP79762 – Pawl Spring
