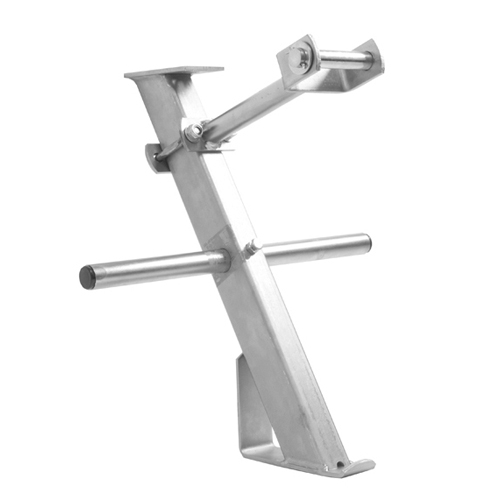

MP796 Trailer Winch Post

• Easily fitted and suitable for most small boat trailers
• Compatible with most small hand winches

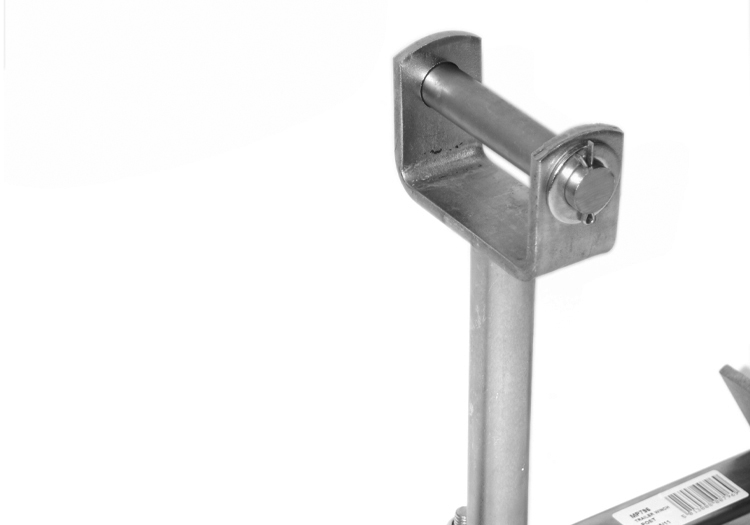

• Incorporates a height-adjustable mounting bracket with 19mm diameter solid spindle for fitting a bow snubber (MP170, not supplied)

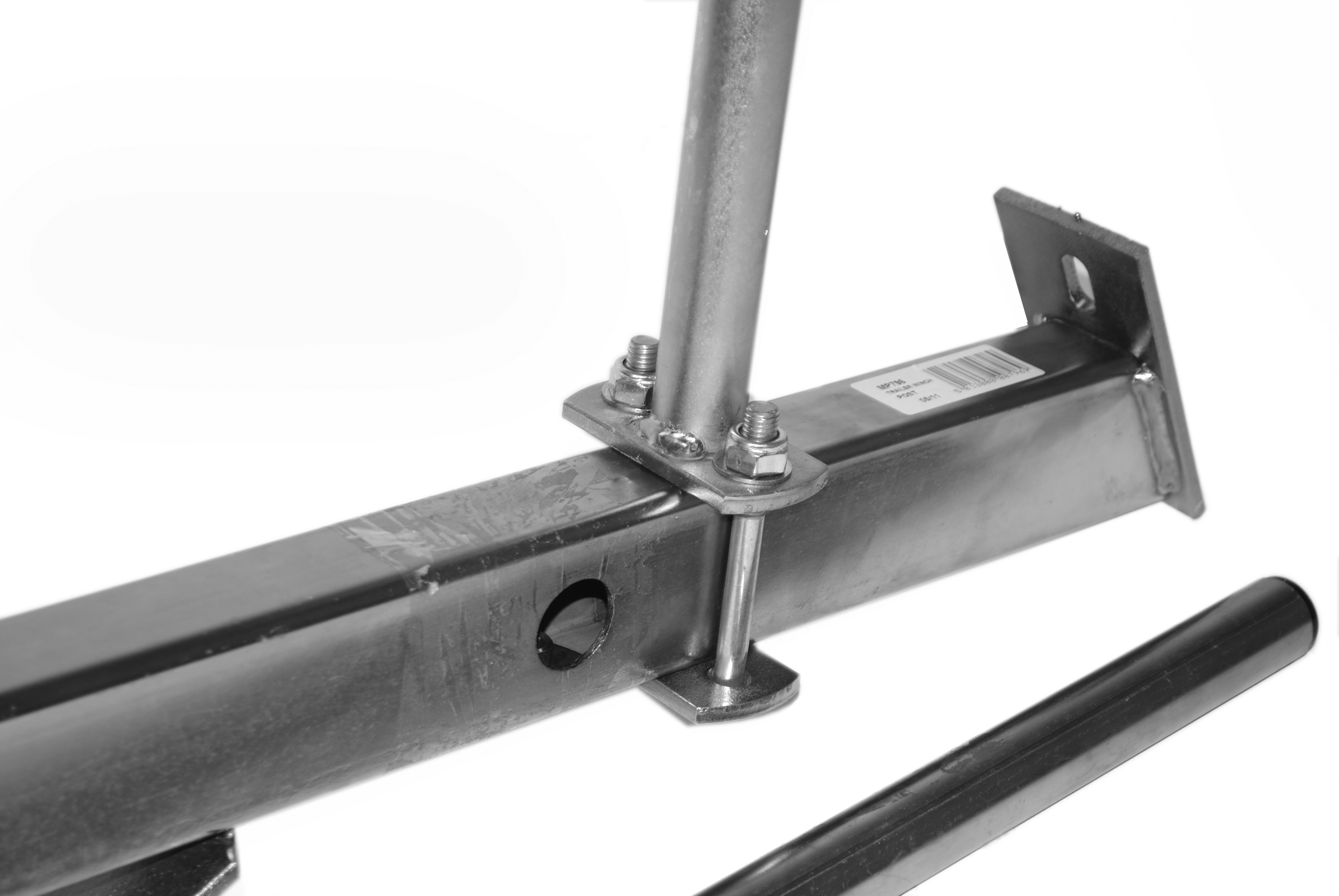

• A U-bolt & plate are supplied for mounting the bow snubber bracket to the main upright
• Main upright is constructed from heavy duty 40x60mm tube Overall height when fitted 45cm (foot to winch mounting plate)
• Foot print 50x150mm (foot plate constructed from 50x6mm strip)
• Winch mounting plate dimensions 60x118mm
• Winch mounting plate has 1 x M10 mounting stud & 1 x 10mm slot (mounting centres are 69-84mm)
• Clear zinc plated finish
