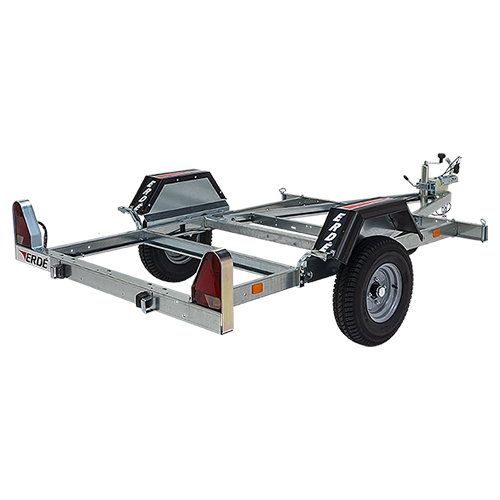

MP6806 Erde CH451 Multifunctional Trailer Chassis

MP6806 Erde CH451 Multifunctional Trailer Chassis

• Gross Weight – 600kg
• External Body Dimensions (cm)
  • L x 306
  • W x 160
  • H x 70
• Internal Body Dimensions (cm)
  • L x 200
  • W x 117
• Unladen Weight – 106kg
• Load Weight Capacity – 494kg
• Tyre Pressure: 3.5 (Bar) / 50.7 (PSI)
• Wheel Torque Settings: 70 N/m or 52 lb/ft, 17mm socket in hubs with nuts (RTN) and 19mm on hubs with studbolts (Alko)
• Painted galvanized steel mudguards with rolled edges
• Jockey wheel included
• Several Accessories available (see below)

MP6806 Erde CH451 Multifunctional Trailer Chassis Spares

MP42510 – 500×10 Spare Wheel
MP69002 – M10 x 1.25 x 29 Wheel Stud (Pk 4)
MP69003 – M10 x 1.25 Wheel Nut (Pk 4)
MP69023 – Knott Hub Cap 47mm x 23mm for Erde 143 & Erde CH451
MP69015 – Knott Hub for Erde 143/Erde CH451
MP1824B – Taper Bearing Kit for Erde 143 & CH451
MP821BL – AJBA 12V Left Hand Vertical Rear Combination Lamp
MP821BR – AJBA 12V Right Hand Vertical Rear Combination Lamp
MP69013B – Clear Front Rectangular Reflector
MP69025 – Amber Side Rectangular Reflector
MP71503 – Pressed Steel 60mm Coupling
MP1979B – 90mm Coupling Skid
