MP604B Single Pole Battery Cut Off Switch

• Standard compact manual battery disconnect switch that features a removable handle with a plastic body
• Rated to 100A continuous current this switch is ideal for light duty applications
• 100 amp continuous rate
• Removable key for safety and security
• Suitable for use with towing and touring auxiliary batteries
• Supplied bulk without retail packaging
• Also available in display retail packaging – MP604
• Specification:
  • Operating Voltage: 12V-24V DC
  • Terminals: M8 zinc plated steel
  • Ingress Protection: IP4X
  • Max Continuous Current: 100A
  • Intermittent Current: 500A (5 sec)
  • Circuitry: SPST

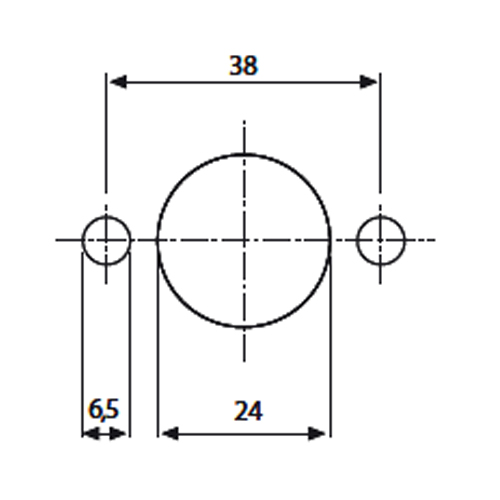

  • Mounting: Flange mount
  • Contacts: Copper
  • Operating Temperature: -40֯c to +85֯c
